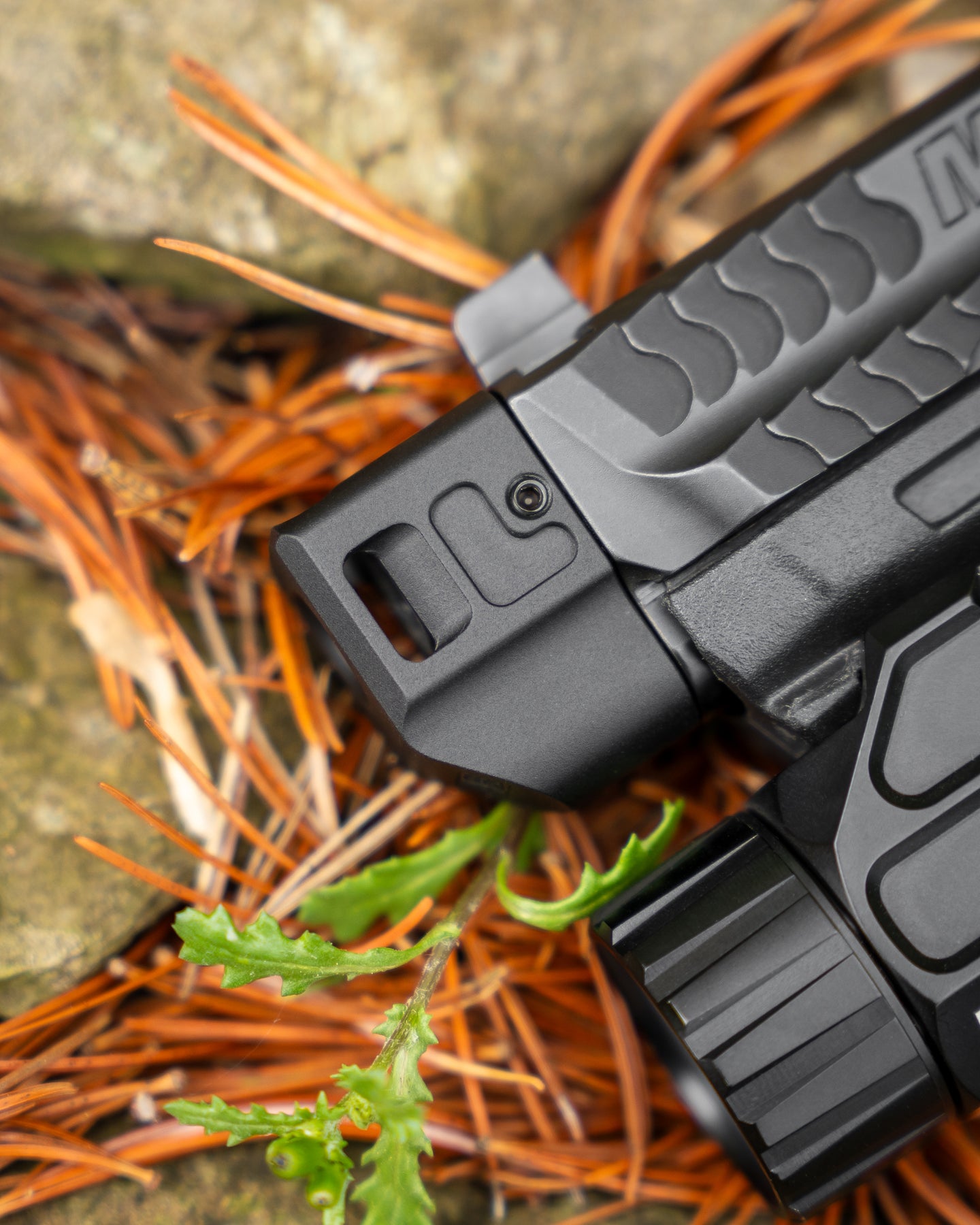

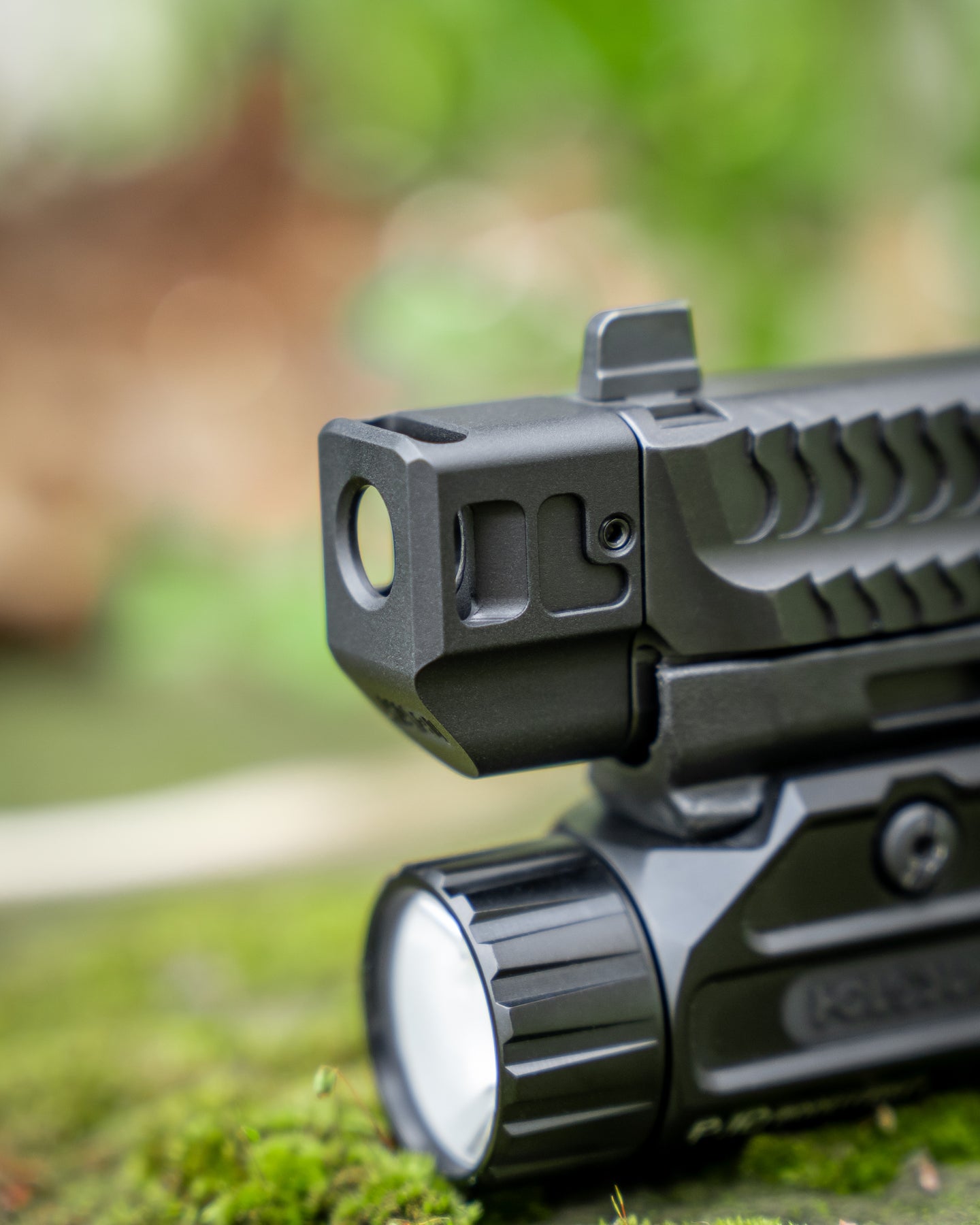

The Herrington Arms HCMP Compensator is designed to work with Smith & Wesson M&p 2.0 series. It is made of high-quality 7075 aluminum and coated with either FDE Cerakote or Black Anodized finish to compliment your specific M&P configuration. The HCMP will work with the stock springs provided your gun has gone through our recommended break in period of 500 rounds factory new ammunition is used with the threaded barrel you intend to use with the firearm before installing a compensator. Fits on 1/2-28 threaded barrels and most aftermarket barrels.
Specifications
Material: 7075 Aluminum
Finish: FDE Cerakote or Black Anodize finish
Compatibility: M&P9 M2.0 Full size and compact, 5in M&P 2.0, 2.0 Metal and Steel series, with a 1/2-28 threaded barrel (if it is not on this list, it is not compatible nor recommended)
V1 Comp: Will only fit M&P9's with 5/8" barrel protrusion from slide (this is our older model)
V2 Comp: Will fit MOST factory and aftermarket barrels (Apex, Agency Arms, Trybe, Factory threaded barrels, SilencerCo, Faxon Firearms - will fit others as well, but these are brands we see most often)
Included: 1/16 Allen key, Steel replacement 6-32 set screws for V1. The V2 uses 8-32x1/8th set screws and 5/64th Allen key.
Length: 1.0"
Highlights
- Engineered to greatly reduce vertical and horizontal recoil of your gun
- Highly durable 7075 Aluminum for extreme longevity and lightness
- Black Anodize or FDE Cerakote finish to complement your specific configuration
- Easy to install, no gunsmith required!
- Uses Steel replacement 6-32 set screws
- MAKE SURE YOUR BARREL ONLY PROTRUDES THE SLIDE BY 5/8" FOR THE V1 MODEL
- DOES NOT WORK WITH KKM OR BARSTO BARRELS!
- REQUIRES A THREADED BARREL
- Blems are cosmetic ONLY. They will function as normal.
AMMO DISCLAIMER: We DO NOT recommend using plated, bi-metal, or frangible ammo in ANY of our compensators. Doing so will void the warranty and we will not cover or replace the comp if there are any damages.
INSTALLATION INSTRUCTIONS
- Make sure all threads are clean of grease, carbon, and loctite. Wipe the threads down till they're clean. If the threads are not cleaned, the loctite will not set properly.
- Only use loctite 243 on the barrel AND set screw threads. Some versions of the blue Loctite are not very strong and will not hold up. Feel free to use a generous amount.
- Torque the set screws to no more than 18in/lbs for 8-32 set screws and no more than 11in/lbs for 6-32 set screws.
- Allow the loctite to set for 24-48 hours before using.
- Please be sure that the compensator is not touching the slide, frame, or guide rod as that can cause cycling issues.
